In CNC machining, the tool shank (the part of the tool that fits into the holder or spindle) plays a critical role in ensuring precision, rigidity, and performance. Different shank types are designed for specific applications, materials, and machines. Below, we break down the 6 most common CNC tool shank types, their pros/cons, and why the 7:24 vs 1:10 taper debate matters for high-speed applications.

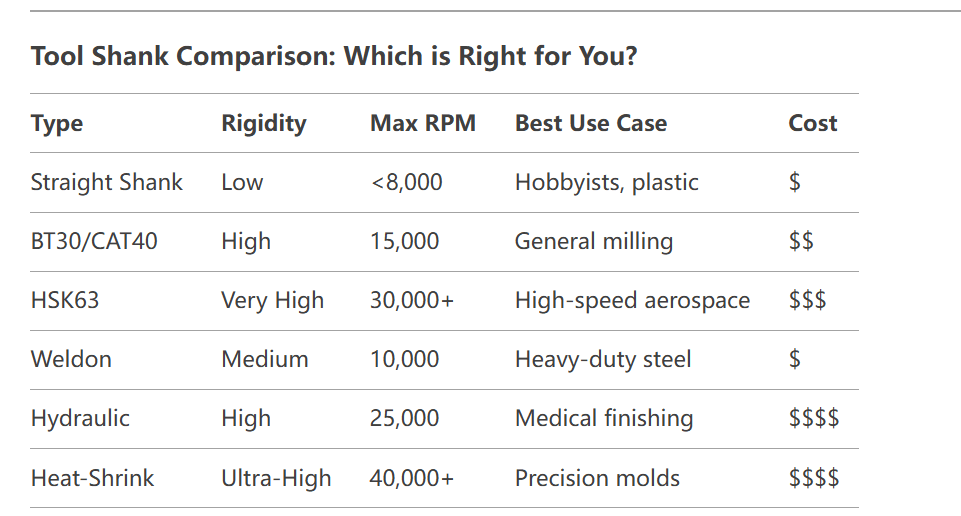

Top 6 CNC Tool Shank Types
Based on design shape and performance characteristics, below are six common CNC tool shank types, each tailored for specific machining needs:
1. Straight Shank
Design: Featuring no taper for simplicity.
Ideal for: drilling in soft materials such as wood or plastic.
Pros & Cons: While highly affordable, this shank lacks rigidity, making it unsuitable for heavy-duty applications.
2. BT/CAT Tapered Shank (7:24 Taper)
Design: Characterized by a steep 7:24 taper angle (e.g., BT30, CAT40).
Widely used for general milling in steel or aluminum.
Pros & Cons: Although excellent for high-torque operations, its design limits spindle speeds to under 15,000 RPM.
3. HSK Shank (1:10 Taper)
Design: Incorporates a hollow, dual-contact taper (e.g., HSK63) for precision.
Best For: Optimized for high-speed machining exceeding 30,000 RPM.
Pros & Cons: While it ensures near-zero vibration, this type requires specialized HSK-compatible spindles.
4. Weldon Shank
Design: Recognizable by flat notches for secure set screw fastening.
Best For: Primarily suited for heavy roughing in tough materials like steel or titanium.
Pros & Cons: Despite its budget-friendly nature, minor runout can occur during operation.
5. Hydraulic Shank
Design: Utilizes hydraulic pressure for tool clamping.
Best For: Perfect for achieving mirror finishes in precision industries like medical manufacturing.
Pros & Cons: While offering unparalleled grip consistency, its advanced mechanism comes at a higher cost.
6. Heat-Shrink Shank
Design: Relies on thermal expansion for ultra-tight tool holding.
Best For: Designed for micro-machining at extreme speeds (40,000+ RPM).
Pros & Cons: Though exceptionally stable, the heating/cooling process slows down tool changes.
Universal Shanks (7:24 Taper)
Universal shanks use a 7:24 taper system in five sizes, but face limitations in high-speed machining and rigidity.

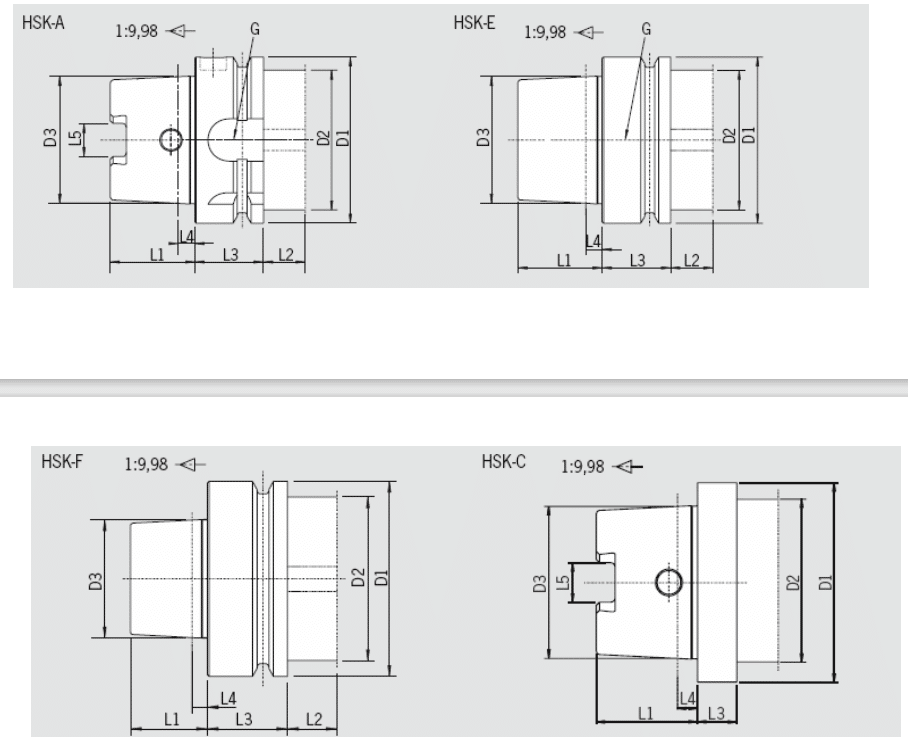

HSK Vacuum Tool Shanks (1:10 Taper) Types and Differences
The HSK system, characterized by its 1:10 taper, is designed to overcome the limitations of the 7:24 taper system.
The German standard DIN 69873 defines HSK-A, HSK-E (automatic), and HSK-C (manual) as the most common types.
Key Differences Between HSK Types:
HSK-A vs HSK-E:
- HSK-A offers high torque for heavy cutting but may have balance issues due to its transmission groove.
- HSK-E Lacks a transmission groove, it’s ideal for lighter cutting and high-speed work.
HSK-E vs HSK-F:
- HSK-E and HSK-F share a similar mechanism but differ in taper size.
- HSK-F’s smaller taper enables higher rotation speeds with smaller spindle bearings compared to HSK-E.
Advantages of HSK System:
7:24 universal shanks fit spindles but limit high-speed machining, rigidity, and overlap accuracy.
HSK vacuum tool holders use elastic deformation for better contact and performance in high-speed machining, rigidity, and accuracy.
7:24 Taper vs 1:10 Taper: Key Differences
7:24 Taper (BT30, CAT40, CAT50)
Design: Steep 7:24 angle (≈16.26°), common in BT and CAT tool holders.
Best For: General machining in steel, aluminum, or titanium.
✅ Pros:
Affordable and widely compatible.
Handles medium-to-high torque (e.g., CAT40 for heavy milling).
❌ Cons:
Limited at ultra-high RPM (>15,000) due to single-contact design.
Prone to micro-vibration in high-speed finishing.
1:10 Taper (HSK-A, HSK-E, HSK-F)
Design: Shallow 1:10 angle (≈5.7°), hollow shank with dual-contact surfaces.
Best For: High-speed machining (30,000+ RPM) in aerospace, medical, or mold-making.
✅ Pros:
Zero vibration at extreme speeds.
Dual contact (taper + face) ensures rigidity.
❌ Cons:
Requires HSK-specific spindle.
Higher upfront cost.
FAQs
Q: Can I use a BT30 tool holder in a CAT40 spindle?
A: No! They have different tapers and flanges. Mixing them risks tool ejection.
Q: Are heat-shrink shanks worth the cost?
A: Yes, for micromachining or molds requiring flawless finishes.
Q: Can I use a 7:24 taper holder for high-speed aluminum machining?
A: Yes, but only up to ~15,000 RPM. Beyond that, switch to HSK (1:10 taper) to avoid vibration.
Q: Why does HSK have a hollow shank?
A: The hollow design reduces mass, improving balance and heat dissipation at extreme speeds.
Q: Are 1:10 tapers backward compatible with 7:24 spindles?
A: No—HSK requires a dedicated spindle.
