Die casting and injection molding are key manufacturing processes for metal and plastic parts. While both involving high temperatures and pressures, their cost structures, materials, and applications differ significantly. Below, we break down their key differences to help you choose the right method.
Die Casting vs Injection Molding: Key Differences

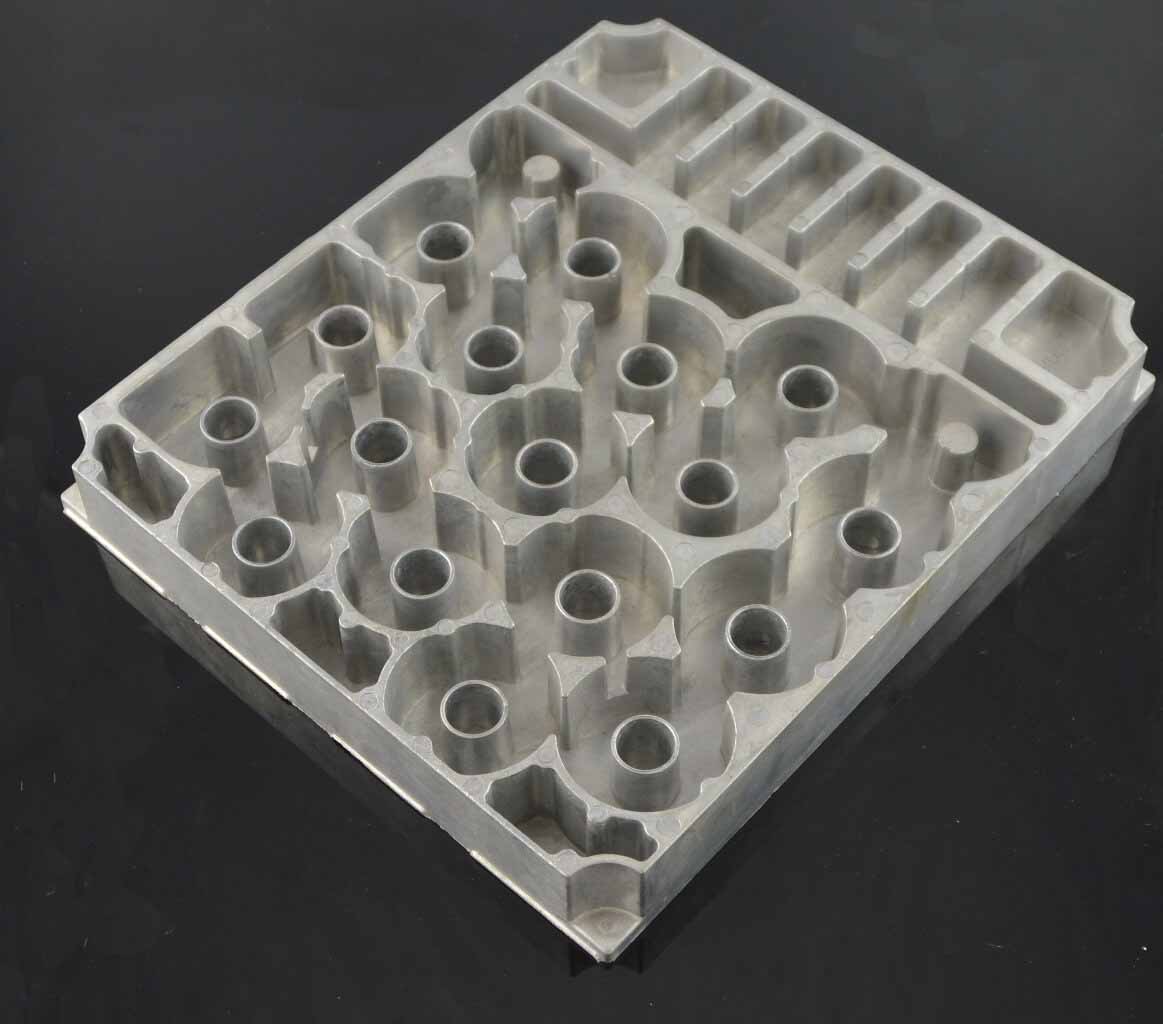

Die casting uses molten metals (e.g., aluminum, zinc) to create strong, precision components.

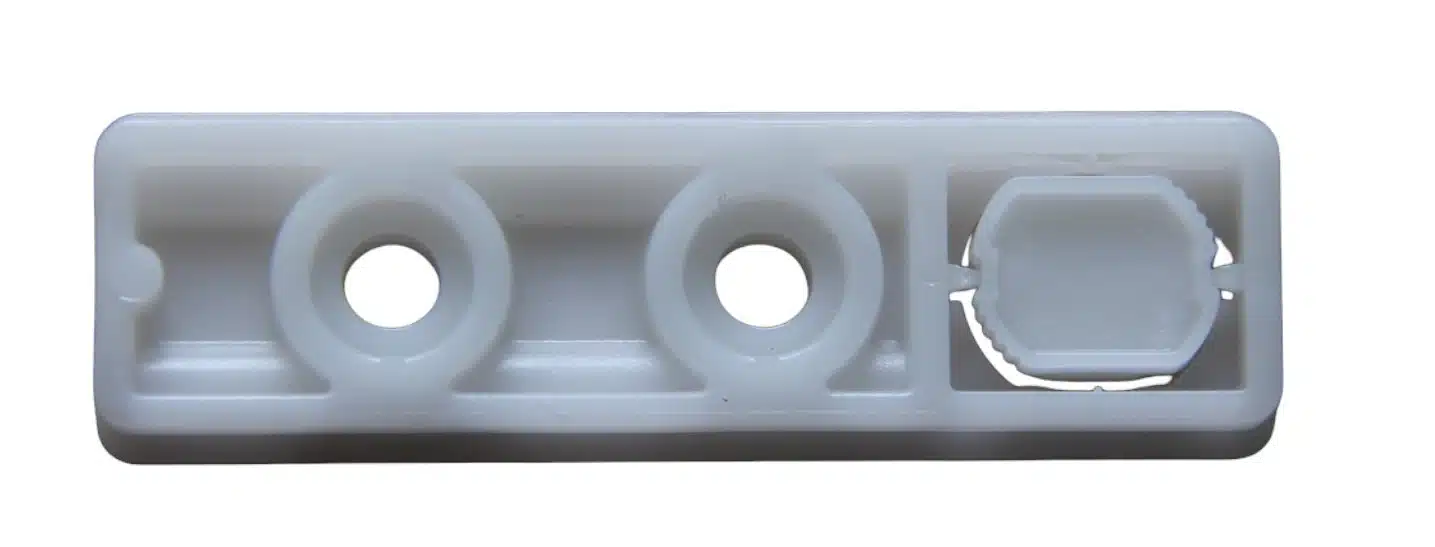

Injection molding melts plastics or polymers to mass-produce lightweight, complex parts.
Materials Used in Each Process
Die Casting Materials
Aluminum Alloys (A380, ADC12): Lightweight, corrosion-resistant, ideal for automotive parts.
Zinc Alloys (Zamak 3/5): High dimensional stability for intricate designs.
Magnesium Alloys (AZ91D): Ultra-lightweight for aerospace/electronics.
Injection Molding Materials
Thermoplastics (ABS, nylon): Customizable for consumer goods.
Engineering Polymers (PEEK, polycarbonate): Heat/chemical resistance for industrial uses.
Die Casting vs Injection Molding: Cost Comparison
| Factor | Die Casting | Injection Molding |
|---|---|---|
| Mold Cost | $ 10,000–100,000+ | $2,000–20,000+ |
| Cycle Time | 1- 5 Minutes | 15-60 Seconds |
| Material Cost | Higher (metals) | Lower(plastics) |
| Volume Efficiency | Best for 10,000+ units | Cost-effective for 1k–1M+ |
| Scrap Rate | 15–20% | 1–5% |
Advantages and Disadvantages for Each Process
Die Casting
Prons:
Precision: High-precision metal parts.
Durability: Long service life.
Efficiency: High production rates.
Cons:
Cost: Higher manufacturing expenses.
Material Limitations: Restricted to certain metals.
Waste: Higher scrap rates and defects.
Complexity: Longer production cycles.
Injection Molding
Pros:
Cost-Efficiency: Lower costs, faster cycles.
Versatility: Wide range of materials.
Standardization: Reduced costs with standardized molds.
Cons:
Volume: High initial volume needed.
Design Constraints: Some limitations in design.
Finishing: Post-molding finishing may be required.
Precision: Lower precision compared to die casting.
Choosing the Right Process for Your Project
Opt for Die Casting if you need:
High-strength metal parts (e.g., automotive brackets, engine components).
Tight tolerances and durability.
Choose Injection Molding if you need:
Cost-effective plastic production (e.g., consumer electronics, medical devices).
Complex geometries and faster turnaround.
Conclusion
Your choice between die casting and injection molding depends on material type, production volume, and budget. Die casting excels for high-strength metal parts, while injection molding dominates cost-effective plastic manufacturing.
Contact AMSL for Deeper insights?
This comparison chart below provides a clear and concise overview of the main differences between die-casting molds and injection molds, helping in decision-making for specific manufacturing process.
Technical Comparison: Mold Design and Performance
| Feature | Die-Casting Molds | Injection Molds |
|---|---|---|
| Injection Pressure | Extremely high, requiring robust mold construction | Lower than die-casting, allowing for less robust design |
| Mold Thickness | Thicker plates to prevent deformation | Thinner plates due to lower pressure |
| Gate System | Complex with diverter cones to manage material flow | Simpler and direct |
| Mold Hardening | Auto-hardening due to high operational temperatures | Requires quenching to achieve desired hardness |
| Surface Treatment | Often requires nitriding to prevent sticking | Less need for nitriding due to lower temperatures |
| Corrosion and Wear | Higher resistance needed due to aggressive conditions | Less resistance required |
| Clearance for Parts | Larger clearances to account for thermal expansion | Tighter tolerances possible |
| Parting Line Precision | High precision needed to contain molten metal | Less critical compared to die-casting |
| Venting | Specialized vent slots and slag collection bags required | Simpler venting through ejector pins and parting surfaces |
| Injection Speed | Fast injection in a single stage | Multi-stage injection with pressure holding |
| Mold Design | Generally simpler two-plate molds | Can be complex, with three-plate designs for certain parts |
| Mold Ejection | Simpler ejection process | May involve complex ejection sequences |
| Material Flow | High temperature and fluidity require precise control | Lower temperature and fluidity allow simpler control |
| Material Used for Molds | Heat-resistant steel like 3Cr2W8V | Various steels like P20, S7, 4140, T8, and T10 |
| Operational Temperature | Over 700°C | 300°C |
| Thermal Expansion | Significant consideration due to high temperatures | Less of a concern |
| Corrosion Appearance | Outer surface often shows blue discoloration | Less prone to discoloration |
