Frequently Asked Questions
Send us the CAD drawings or a sample of the part, molding material ; estimated annual quantity ; application of the part; or existing mold design; or you can
Simply fill out the form on the following page
When making a choice between a cold runner mold and a hot runner mold, there are several factors to consider:
1. Cost
2. Material and Design
3. Cycle Time
4. Flexibility:
5. Maintenance and Downtime

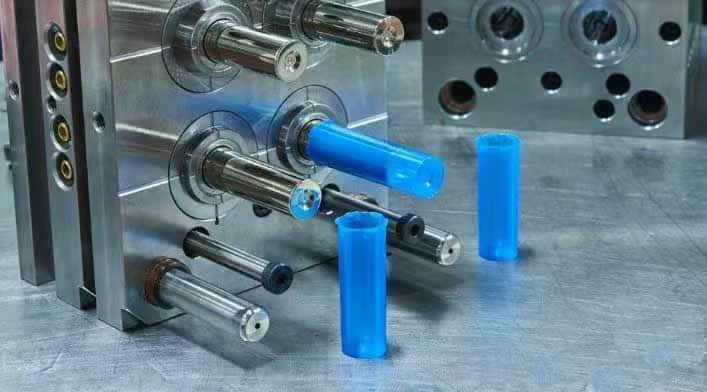

Injection Mold Making
The process of injection mold making, from RFQ to mold delivery, A step-by-step guide for a mold builder.

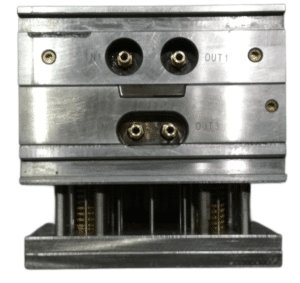

MUD(The Master Unit Die) is a standard mold structure commonly used for small product manufacturing. It involves employs a shared mold base and only replaces the mold core, keeping the structure simple and costs low. Therefore, also known as a quick mold change system.
The MUD System consists of two main components: the MUD frame ( the frame standards/types ) and the MUD insert.
The MUD frame is a standardized base that remains mounted to the injection molding machine at all times. While the MUD insert is custom-made and specific to each desired shape of products.
Before we select the material for the injection molding project, we need consider the following point
Mechanical Properties: Understand the mechanical requirements of your part, such as strength, flexibility, impact resistance, and stiffness. Different plastics offer varying degrees of these properties.
Environmental Factors: Consider the operating environment of the part. Will it be exposed to chemicals, moisture, UV light, or extreme temperatures? Certain plastics are more resistant to these factors than others.
Cost and Production Efficiency: Evaluate material cost per part, as well as factors like cycle time, mold complexity, and ease of processing. Some materials may require specialized equipment or longer cooling times.
Material Compatibility: Ensure compatibility with any secondary processes (e.g., painting, plating) and assembly methods. Some plastics bond well with adhesives or other materials, while others may require surface treatments.
Regulatory and Compliance Requirements: Check if your part needs to meet specific regulatory standards (e.g., FDA, RoHS). Certain plastics are certified for use in medical, food-contact, or electrical applications.
- Processing Properties: Injection molded parts of the material need to have good processing properties, including melt fluidity, shrinkage, and molding properties. These factors will affect the stability of injection molding processing and molding quality.
Aesthetics and Surface Finish: Consider the appearance requirements of your part. Different plastics offer varying levels of surface finish, texture options, and colorability.
Sustainability Considerations: with the rise of the concept of sustainable development, the sustainability of the material has also become an important consideration. Need to consider the recyclability, degradability, and other characteristics of the material.
Above points we need take into consideration before we start the project.
Since the mold itself constitutes the largest portion of upfront production expenses, how much does an injection mold typically cost ?it becomes most important questions. The cost of an injection mold can vary widely depending on various factors such as the size and complexity of the mold, tight-tolerance ; the steel material being used, the number of cavities, and the manufacturer you choose. so many factors determine the full cost. It is best to contact a few mold manufacturers and provide them with your specific requirements to get an accurate cost estimate.
The lead time for build an injection mold can vary depending on various factors such as complexity, size, design changes, and the availability of resources. Generally a simple mold can be completed in 2-4 weeks. A complex mold in 6-8 weeks. A prototype aluminum mold in 2-3 weeks possibly again depending on complexity, the workload and capacity of manufacturer .
Plastic injection molding can be cost-effective for large-scale production runs due to its efficiency in creating identical parts with minimal waste. While initial setup costs, including mold fabrication, can be significant but are spread across many units, lowering the cost for each unit. Factors affecting cost include material selection, part complexity, and production volume.
High Volume vs. Small-scale Production
Small-scale or prototype runs may have higher costs per unit due to setup expenses. Overall, injection molding is generally considered economical for mass production compared to other manufacturing methods.
Plastic injection molding can be cost-effective for large-scale production runs due to its efficiency in creating identical parts with minimal waste. While initial setup costs, including mold fabrication, can be significant but are spread across many units, lowering the cost for each unit. Factors affecting cost include material selection, part complexity, and production volume. Small-scale or prototype runs may have higher costs per unit due to setup expenses. Overall, injection molding is generally considered economical for mass production compared to other manufacturing methods.
For most plastic injection molding processes, tolerances can range from +/- 0.005 inches to +/- 0.002 inches per inch, Of course, tolerances will vary depending on the specific situation.
If more precise parts are required, tolerances can be made smaller, but this also increases manufacturing costs.
Below are the critical factors that affect plastic injection mold costs:
1. Design and Engineering: Molds require complex design and precise engineering to ensure they can produce parts that meet specifications
2. Material Costs: High-quality molds with high volume requirements often use durable, high-strength materials that are costly.
3. Manufacturing Process: Making molds involves using high-precision equipment like CNC, and EDM machines, which is time-consuming and requires skilled labor.
4. Prototyping and Testing: Multiple iterations of prototyping and testing are necessary to ensure mold performance and product quality, adding to costs.
5. Durability: Injection molds must withstand high pressures and temperatures, requiring high standards in design and manufacturing to ensure long-term use.
These factors collectively contribute to the higher costs associated with plastic injection molds.
